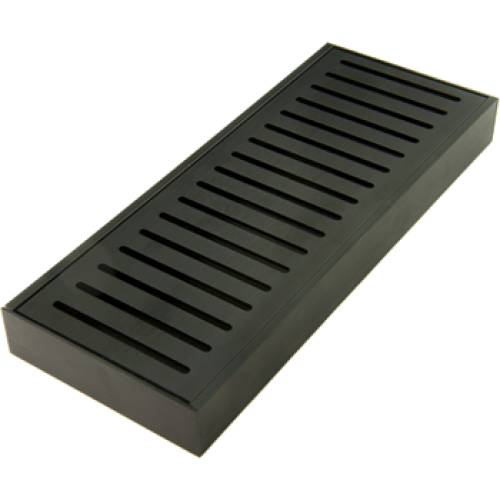

Features:

• Custom length floor tile insert

• Any Size, Any Waste Position
• Available in lengths up to 5.6m (ability to extend further using Lauxes joiners)

• Easy to cut to desired length

• Easy to clean (easy roll out system)

• No welding required

• No major plumbing involved as waste canbe positioned anywhere along the bottom tray.

• Australian Standards and watermarked with a lifetime rustproof warranty

• WaterMark Certification 022370 in accordance with WMTS - 040

• Installation MUST be by a licensed plumber and in accordance with AS/NZA 3500.2

• Please note the waste hole is not drilled in the bottom tray - please advise if this is required (additional fees apply)

• A bi-metal hole saw can be used to cut the drainage hole - please ask your plumber/builder

• Includes: 1 x tile insert, 2 x end caps and 1 x 40mm, 50mm, 72mm (most popular) or 80mm waste

Cutting & Assembly Instructions:

• For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more.
• A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
• 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
• 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
• 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
• 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
• 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
